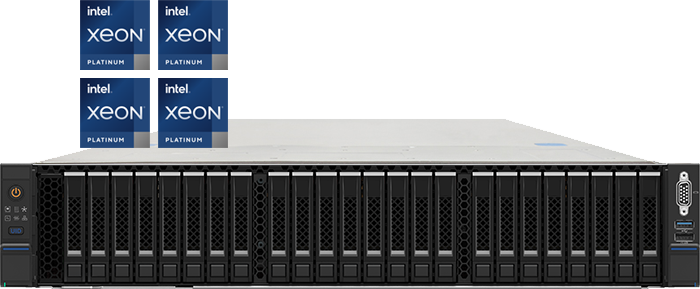

M70KLP 4 Socket Xeon Gen3 2U Server Intel Servers

Intel's most Powerful 4 socket 2U Server System powered by the latest Intel 3rd Generation Xeon Scalable Processors deliver significantly enhanced performance and efficiency.

M70KLP 4 Socket Intel® servers provide:

  • Significantly enhanced performance and faster time to value.
  • Next-generation, 5G ready platforms optimised for HPC and the cloud.
  • Built-in workload and service acceleration.
  • Enhanced security features.
  1. Home
  2. Intel Servers
  3. M70KLP 4 Socket Xeon Gen3 2U Server
Quickspecs.
Ultra High-Performance 2.5" Drives NVMe Drives
Intel M70KLP 4 Socket Server - 8 Drive SAS/SATA/NVME Bays

3rd Generation Quad Xeon Scalable Processor, PCIe Gen4, Intel Server management port - IPMI 2.0 & Redfish, optional redundant power supply

U Size:
2U
Processor Family:
Dual Intel Xeon Scalable Processors
Maximum RAM:
3TB
Chassis Features:
Redundant Power
HDD Size:
2.5" Drives
Expansion Slots:
6x PCIe
A Partir De: €19,226
Configurer
Quickspecs.
Intel M70KLP 4 Socket High Memory Server - 8 Drive SAS/SATA/NVME Bays

3rd Generation Quad Xeon Scalable Processor, PCIe Gen4, Intel Server management port - IPMI 2.0 & Redfish, optional redundant power supply

U Size:
2U
Processor Family:
Dual Intel Xeon Scalable Processors
Maximum RAM:
3TB
Chassis Features:
Redundant Power
HDD Size:
2.5" Drives
Expansion Slots:
6x PCIe
A Partir De: €19,226
Configurer
Quickspecs.
Intel M70KLP 4 Socket Server - 16 Drive SAS/SATA/NVME Bays

3rd Generation Quad Xeon Scalable Processor, PCIe Gen4, Intel Server management port - IPMI 2.0 & Redfish, optional redundant power supply

U Size:
2U
Processor Family:
Dual Intel Xeon Scalable Processors
Maximum RAM:
3TB
Chassis Features:
Redundant Power
HDD Size:
2.5" Drives
Expansion Slots:
6x PCIe
A Partir De: €20,022
Configurer
Quickspecs.
Ultra High-Performance 2.5" Drives NVMe Drives
Intel M70KLP 4 Socket Server - 24 Drive SAS/SATA/NVME Bays

3rd Generation Quad Xeon Scalable Processor, PCIe Gen4, Intel Server management port - IPMI 2.0 & Redfish, optional redundant power supply

U Size:
2U
Processor Family:
Dual Intel Xeon Scalable Processors
Maximum RAM:
3TB
Chassis Features:
Redundant Power
HDD Size:
2.5" Drives
Expansion Slots:
6x PCIe
A Partir De: €21,203
Configurer
Quickspecs.
Intel M70KLP 4 Socket High Memory Server - 24 Drive SAS/SATA/NVME Bays High Memory

3rd Generation Quad Xeon Scalable Processor, PCIe Gen4, Intel Server management port - IPMI 2.0 & Redfish, optional redundant power supply

U Size:
2U
Processor Family:
Dual Intel Xeon Scalable Processors
Maximum RAM:
3TB
Chassis Features:
Redundant Power
HDD Size:
2.5" Drives
Expansion Slots:
6x PCIe
A Partir De: €21,203
Configurer

Appelez un spécialiste du stockage et des serveurs de Broadberry maintenant: +33 1 72 81 06 78

Etre recontacté par un expert Broadberry:

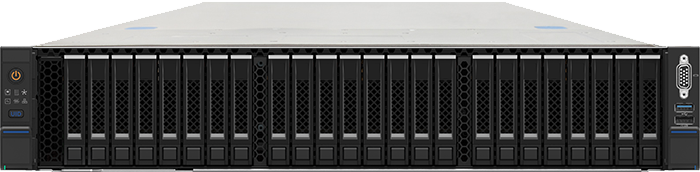

4-Socket Servers and Modern, Mainstream Needs

The M70KLP Intel Server system delivers the capacity required for high performance and memory-bound scale up workloads like database, analytics and more. Intel Optane persistent memory 200 series is supported, allowing up to 4.5TB of system memory per processor or 15TB of system memory per server in App Direct Mode.

Key Features

  • 3rd Gen Intel® Xeon® Scalable processors
  • Up to 28 cores per processor
  • 4 Sockets, for up to 112 cores per server
  • Up to 6 Intel® UPI (double from previous generation)
  • Intel® Optane™ persistent memory 200 series support
  • Up to 15 TB memory
  • 3 TB of DRAM, plus 12 TB of Intel® Optane™ persistent memory 200 series when using App Direct Mode
  • 12 DDR4 DIMMs per socket; 48 DIMMs total
  • 1x OCP3.0, 1x 1GB, Dedicated Management Port
  • 24 x 2.5” SAS/SATA/SSD/NVMe hot-swappable drives (front access)
  • 2x M.2 SSDs (internal)
  • Up to 12 PCIe Gen 3 slots

Performance

  • Maximum performance per node with highest memory bandwidth and I/O lanes.
  • Twice as many PCIe lanes through doubling CPU lanes.
  • More NVMe drives.
  • More SAS connectivity.
  • Attach sets of GPUs to CPUs.

Scalability

  • Increases in core count/rack and VMs/rack.
  • More CPUs, memory, PCIe expansion per node.
  • Scale-up headroom.
  • Enhanced VM/container density.
  • Reduced stranded resources.

Cost Efficiency

  • Reduced total cost of ownership.
  • Consolidated per node costs.
  • Less management software costs.
  • Lower network costs.
  • Reduced hero costs.

The Ideal Bridge Between Scale Up and Scale Out

The M70KLP Intel Server System is an excellent, high-performance and cost-effective option for common, scale-out workloads that excel in the data centre, lowering sprawl, per-node licensing costs and operating and management expenses.

Cloud

Consolidate scale out workloads.

Distributed web scale cache stores which deliver in-memory caching of key-value type data (Memcached, KeyDB, Redis).

Containerised deployments (Kubernetes, Red Hat OpenShift, etc.).

Analytics

Big Data processing engines like Apache Spark or Presto.

Applications performing real-time processing of big unstructured data (financial services, Hadoop/Spark clusters).

Absorb applications where large data is consumed, altered and stored for future post-processing on other platforms.

In-Memory Database

In-memory databases utilising data storage formats and analytics for business intelligence, for example SAP HANA.

Distributed web scale cache stores that deliver in-memory caching of key-value type data (Memcached, KeyDB, Redis)

Virtual Machine (VM)/Container Density

More VMs, less stranded resources.

Large VM (VMware, KVM, oVirt, etc.)

Scale-Up

High Performance, relational (MySQL, Oracle, Postgres, DB2) and NoSQL (MongoDB, Cassandra) databases.

Big Memory HPC, and EDA applications.

3rd Gen Intel Xeon Scalable Processors Are...
  • Optimised for cloud, HPC, enterprise, security, network and IoT workloads with up to 40 powerful cores and a multitude of frequency, feature and power levels.
  • Infused with Intel Crypto Acceleration, enhancing the performance of encryption intensive workloads including SSL web serving, 5G infrastructure and VPN/firewalls whilst reducing the performance impact of pervasive encryption.
  • The only data centre CPU featuring built-in AI acceleration, end-to-end data science tools and an ecosystem of smart solutions.
  • Designed and built for the demands of cloud workloads and to support a variety of XaaS environments.
  • Powered by Intel 5GX, which safeguards data and application code from the edge to the data centre and multi-tenant public cloud.
3rd Gen Xeon Scalable Platinum Processors
  • Up to 40 cores per Intel Xeon Platinum processor.
  • Up to 8 memory channels at up to 3200 MT/s
  • Features built-in AI acceleration (Intel DL Boost) with int8 (VNNI) and bfloat165 quantisation for accelerated AI inference and training performance.
  • Features Intel SGX, the most deployed trusted execution environment, with up to 512GB enclave per processor.
3rd Gen Xeon Scalable Gold Processors
  • Up to 32 cores per Intel Xeon Gold processor
  • Up to 8 memory channels at up to 3200 MT/s.
  • Featuring Intel SGX, the most deployed trusted execution environment, with up to 64GB enclaves per processor.
3rd Gen Xeon Scalable Silver Processors
  • Up to 20 cores per Intel Xeon Silver processor.
  • Up to 8 memory channels at up to 2667 MT/s.
  • Featuring Intel SGX, the most deployed trusted execution environment, with up to 8GB enclave per processor.

3rd Gen Intel Xeon Scalable Processor Specifications

Maximum Core Count Supported Up to 40
Base Frequency Supported Up to 3.1 GHz
Maximum Single-Core Intel Turbo Boost Technology 2.0 Frequency Supported Up to 4.3 GHz
Processor Cache Memory Support Up to 38.5 MB of L3 Cache (1.375 MB/core)
Intel Ultra Path Interconnect (Intel UPI) Six Intel UPI supported per processor (Up to 10.4 GT/s)
Processor Performance Support Intel Turbo Boost 2.0 Technology, Intel Hyper-Threading Technology (Intel HT), Intel Speed Shift Technology, Enhanced Intel SpeedStep Technology
Intel Speed Select Technology (Intel SST) Intel SST Core Power (SST-CP) and Intel SST Turbo Frequency (SST-TF) features are supported on select processors
Intel Deep Learning Boost VNNI and bfloat16 supported
Intel Advanced Vector Extension 512 (Intel AVX-512) Support Intel AVX-512 with up to 2 FMA support
Number of Processor Sockets Supported 4 or 8 sockets
Thermal Design Point (TDP) Supporting a range from 150W to 260W depending on customer needs and implementation
Socket Type Socket P+ (4189 pins)
System Memory Support 6 channels, Up to DDR4 3200 MT/s (1 DPC) with ECC support
12 DIMMs/socket, Support for 16Gb density DIMMs
Intel Optane Persistent Memory Support Intel Optane Persistent memory 200 series supported on 4-socket systems only
Maximum DRAM System Memory Supported Up to 4.5 TB per socket
Supported Chipsets Intel C620A series chipsets, available with integrated Intel QuickAssist Technology
PCH I/O PCI Express* 3 - Up to 20 lanes (8 GT/s)
USB* 3.0 - Up to 10 ports
SATA* 3.0 - Up to 14 ports
DMI - Up to 4 lanes, Gen 3
Platform Manageability Intel Server Platform Services (Intel SPS) and Intel Resource Director Technology (Intel RDT)
Storage Manageability Intel Volume Management Device (Intel VMD)
